Economic and easy use Japanese drill sharpener for drill bit sharpening, drill polishing

  • >=260 Pieces
    $300.00
Model Number:
N-860 N-861 N-860-1
Lead Time:
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Internal Grinding Machine
CNC or Not:
Normal
Max. Grinding Diameter:
2.6~13mm
Max. Grinding Length:
10~
Place of Origin:
Japan
Brand Name:
K-tool
Voltage:
AC100V
Dimension(L*W*H):
200x120x173mm
Certification:
NO
After-sales Service Provided:
No after-sales service
Warranty:
Unavailable
Application:
drill polishing
Usage:
drill bit sharpen
Keywords:
drill bit sharpener
Power(W):
95W
Weight:
1.9kg
Supply Ability
Supply Ability:
10 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Packing
Shipping Method(by sea or air, or by overseas courier such as DHL,UPS,FedEx, EMS etc.)
Port
Kanazawa/Nagoya/Osaka
Lead Time :
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 15 To be negotiated
Product Description

Economic and  easy use Japanese drill sharpener, drill bit sharpener, drill polishing machine





Model NO.

N-860

Name

Doriken Ace A type

Body size(mm)

200x120x173

Weight

1.9kg

Drill size

Straight shank drill:2.6~13mm
Hexagon shank drill:7.1~13mm

Applicable drill type:

HSS drill
Titanium coating high speed drill
Cobalt high speed drill
∗Carbide drills / concrete drills  cannot be polished.

Cutting edge polishing angle

118 degree

Relief angle

10 degree

∗changes according to the diameter of drill.

Thinning shape

X

Motor voltage

AC100V

Motor power consumption

95W

Motor rated frequency

50/60Hz

Motor rated time

15 minutes

Motor rotation speed

18500min-1

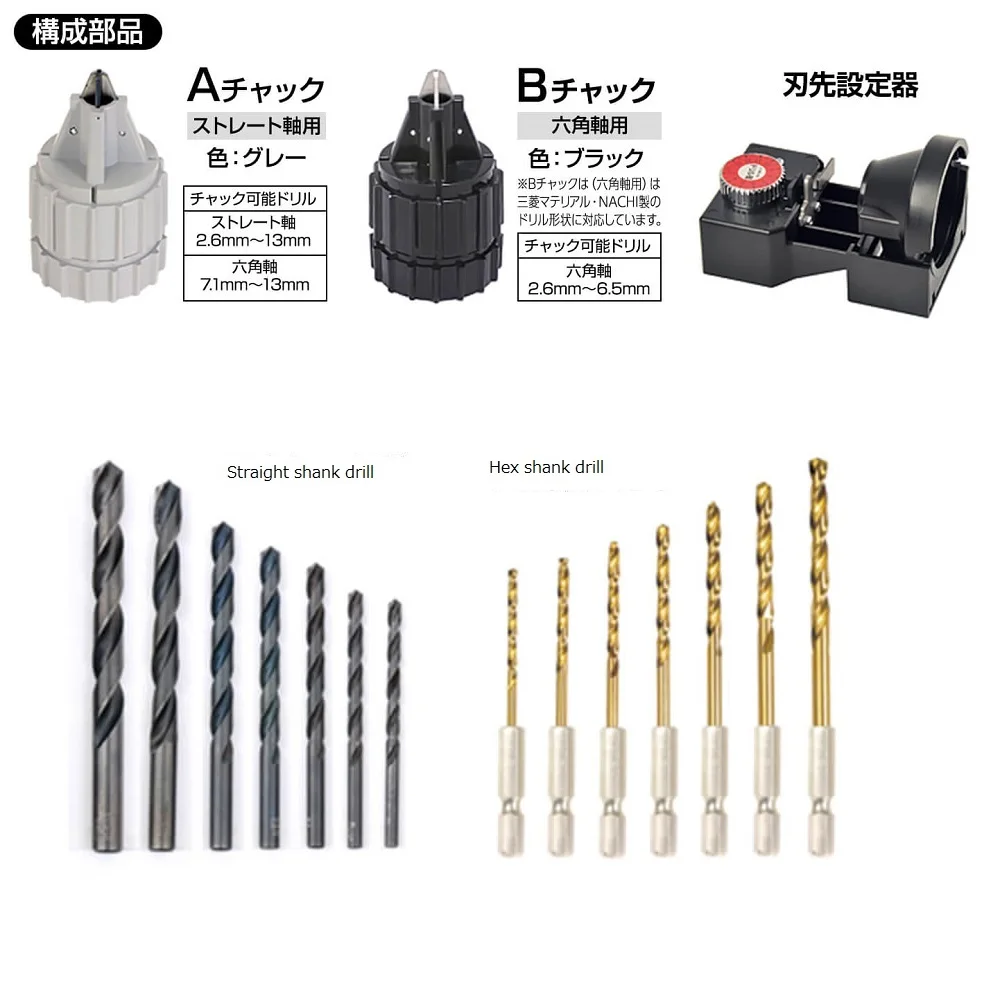

Accessories

A chuck (for straight shank drill)

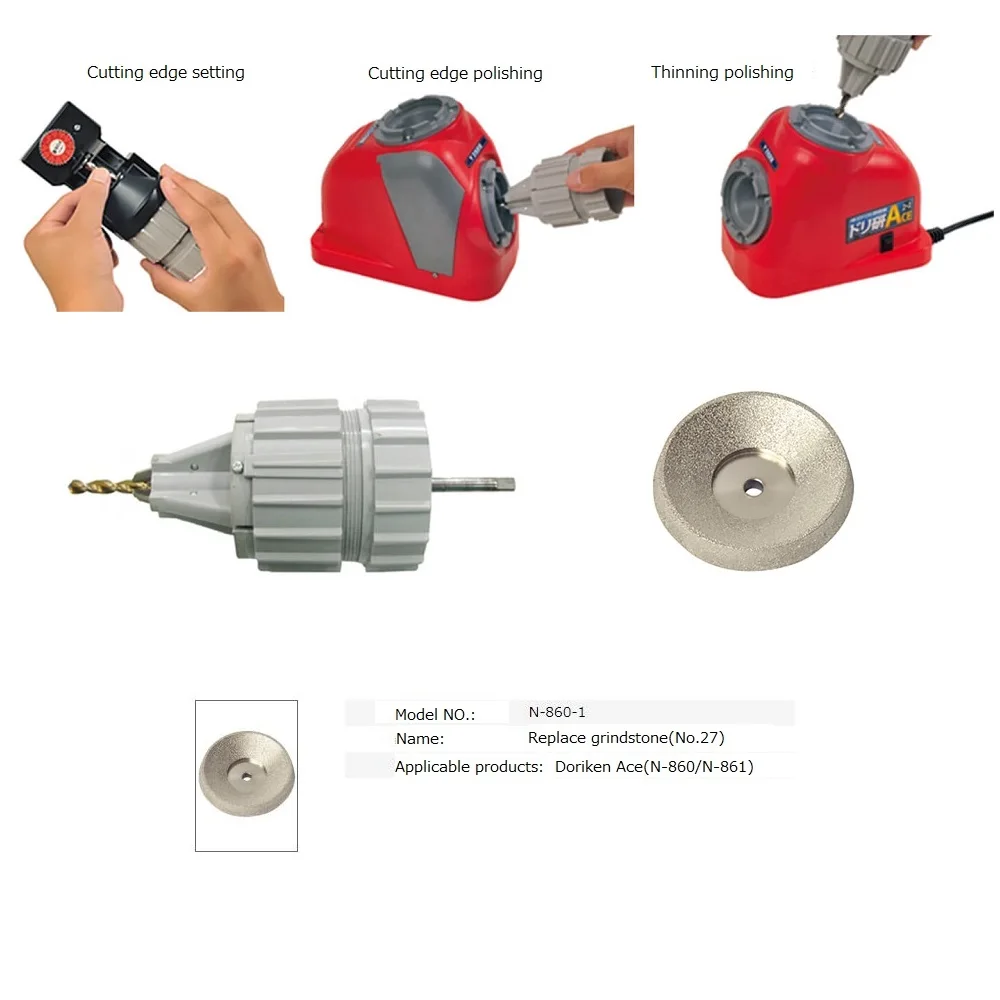

Cutting edge setting device



Model NO.

N-861

Name

Doriken Ace AB type

Body size(mm)

200x120x173

Weight

1.9kg

Drill size

Straight shank drill:2.6~13mm
Hexagon shank drill:2.6~6.5/7.1~13mm

Applicable drill type:

HSS drill
Titanium coating high speed drill
Cobalt high speed drill
∗Carbide drills / concrete drills  cannot be polished.

Cutting edge polishing angle

118 degree

Relief angle

10 degree

∗changes according to the diameter of drill.

Thinning shape

X

Motor voltage

AC100V

Motor power consumption

95W

Motor rated frequency

50/60Hz

Motor rated time

15 minutes

Motor rotation speed

18500min-1

Accessories

A chuck (for straight shank drill)
B chuck(for hexagon shank drill)
∗B chuck is applicable for Mitsubishi and Nachi drill shape.
Cutting edge setting device
